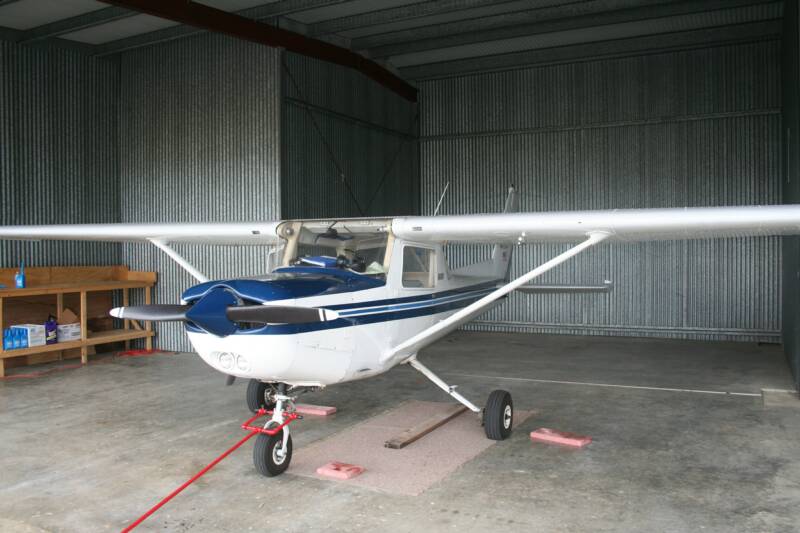

The Cessna 152 is one of the most popular trainers ever built.
SPEED:
Maximun at Sea Level - 109 knots
Cruise, 75% Power at 8500ft - 106knots
75% Power at 8500ft - Range 315NM
24.5 Gallons Usable Fuel - Time 3.0hrs
75% Power at 8500ft - Range 540NM
37.5 Gallond Usable Fuel - Time 5.2hrs
Maximun Range at 10,000 Ft - Range 370NM
24.5 Gallons Usable Fuel - Time 4.1hrs
Maximun Range at 10,000 Ft - Range 625NM
37.5 Gallons Usable Fuel - Time 6.9hrs
RATE OF CLIMB AT SEA LEVEL - 715 FPM
SERVICE CEILING - 14,700ft
TAKEOFF PERFORMANCE:
Ground Roll - 725 Ft
Total Distance Over 50-Ft Obstacle - 1340 Ft
LANDING PERFORMANCE:
Gound Roll - 475 Ft
Total Distance Over 50-Ft Obstacle - 1200 Ft
STALL SPEED (KCAS):
Flaps Up, Power Off - 48 Knots
Flaps Down, Power Off - 43 Knots
MAXIMUN WEIGHT:
Ramp - 1675 LBS
Takeoff or Landing - 1670 LBS
STANDARD EMPTY WEIGHT:
152 - 1104 LBS
152 II - 1136 LBS
152 Trainer - 1147 LBS
MAXIMUN USEFUL LOAD:
152 - 571 LBS
152 II - 539 LBS
152 Trainer - 528 LBS
BAGGAGE ALLOWANCE - 120 LBS
WING LOADING - (Pounds/Sq Ft) 10.5
POWER LOADING - (Pounds/HP) 15.5
Fuel Capacity - Total
Standard Tanks - 26 gal
Long Range Tanks - 39 gal
OIL CAPACITY - 7 QTS
ENGINE - Avco Lycoming 108 BHP at 2550 RPM
PROPELLER - Fixed Pitch, Diameter - 69 in
